Hupuu Electronics

HK676D 1/1.6" Starvis2 SONY IMX676 12MP 3500x3500 30fps H.265 IP Starlight Security CCTV HD Camera Module board

HK412D 1/2.3" SONY IMX412 12MP 3500x3500 30fps H.265 IP Starlight Security CCTV HD Camera Module board

HK412D 1/2.3" SONY IMX412 12MP 3500x3500 30fps H.265 IP Starlight Security CCTV HD Camera Module board

SKU:

HK412D

Category: Starlight Camera Board Starlight IP Camera Board IP Camera Board Dual Board IP Camera Board 8MP UHD 4K IP Camera Board 12MP UHD 4K IP Camera Board

Video Coding Format: H.264 H.265 H.265+

HTML5 Starlight Starvis 2

$168.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $155.00 - $168.00

Sensor Optical Format: 1/1.8"

Imaging Sensor: IMX412

Effective Pixels: 12MP

Hole Distance: 22mm

Bottom Group

Description

HK412D 1/2.3" SONY IMX412 12MP 3500x3500 30fps H.265 IP Starlight Security CCTV HD Camera Module board

Feature:

1/2.3" 12MP Sony IMX412 CMOS sensor
HTML5 plugin free web page access video preview for Chrome IE Edge Firefox Safari Browsers
Standard 38*38 dual board structure
Support H.265+, H.265, H.264 encoding

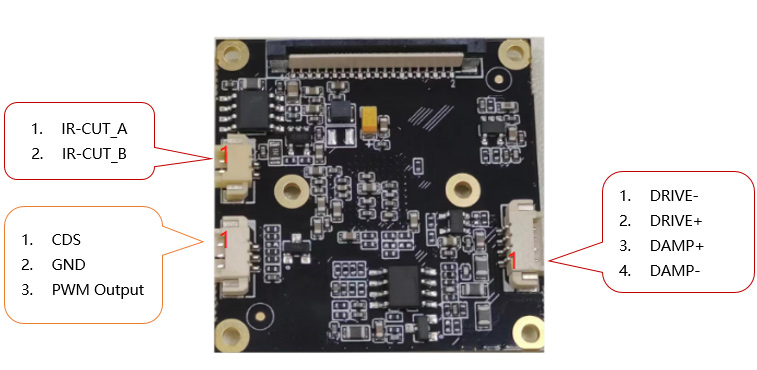

Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color/Dual light mode, support PWM dimming
Support standard ONVIF, GB28181
Support motorized zoom (optional), auto iris (optional)
Provide SDK development kit, support secondary development
Support AI ISP image enhance
Intelligent functions: motion detection

SOC	Hi3519DV500,Cortex A55@1000MHz
Sensor	1/2.3" Progressive Scan CMOS IMX412
Min illumination	Color: 0.001Lux@F1.0(AGC ON), Black & White: 0.001Lux@F1.0;
WDR	100 dB

Main Stream Resolution	30 fps@（3500x3500, 3000x3000, 2160x2160,1520×1520）
Sub Stream Resolution	30 fps@（704×576,640×480）
Third Stream Resolution	30 fps@（704×576,640×480）
Coding	H.265+/H.265/H.264
Bitrate	512 Kbps~32 Mbps
H.264 coding	Baseline Profile/Main Profile/High Profile
H.265 coding	Main Profile
Bitrate	CBR,VBR
Character Overlay	Support
Image watermark overlay	Support
Image Enhance	Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission
Image settings	Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support

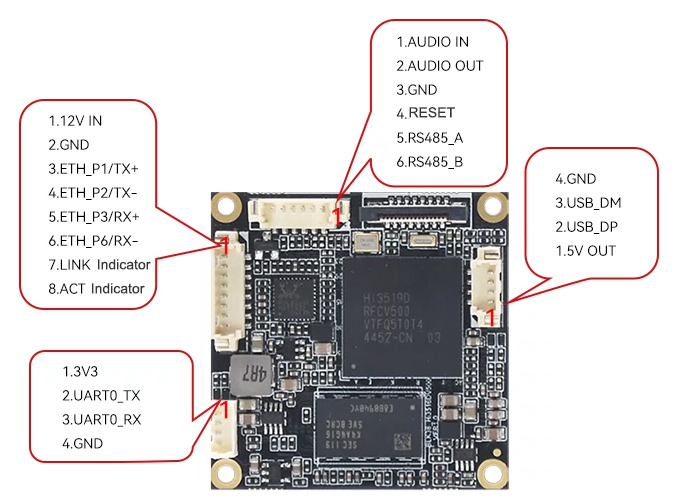

Audio port	1ch input, support mic / line in; 1ch output support earphone or amplifier
Audio sampling bitrate	8 kHz
Audio coding format	G.711u law / G.711a law / G.726 / AAC-LC(32K)

Preview channels	12ch MAX
Protocol	HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.,Support ONVIF standard protocol
Browser	Preview with plugin: IE10,IE11 Preview with local service: Edge,Chrome,Firefox etc.

Network	1 RJ45 Ethernet port, 10M/100M adaptive
Audio	1ch input, support for mic or line in; 1ch output, support for connecting headphones or amplifiers
LED light	Support photosensitive detection input, support PWM dimming
USB	1 USB2.0 (5V Power), Support 4G/WiFi/Storage/UVC
Reset	Support

Size	38x38x18mm,38mm dual board structure
Weight	34 g
Working temperature	-20°C ~ +60°C
Power consumption	DC12V Power input, 4W (Max)
