LF12-M12N18-8MP 1/1.8" 12mm Focal length 8MP F2.0 M12 CCTV None Distortion lens

1. 8MP resolution lens, Aperture F2.0, 1/1.8 inch and supported by 4K SONY IMX178/IMX226/IMX334 and OV OS08A10 Sensor, optical glass and metal process.

2. The japanese optorun coating machine for muti-layer coating bring more excellent image effect.

3. Lens has long distance view about 15-25 meters.

4. It is a No Distortion Lens(Optical Distortion only -2%), you can get a perfect and real image as you eyes.

Model		LF12-M12N18-8MP-F2
Resolution		8 Megapixel
Image format		1/1.8"
Focal length		12mm
Aperture		F2.0
Mount		M12
Field Angle DxHxV(°)	" °	1/1.8"
	D	41.9°
	H	33.9°
	V	21.6°
Optical Distortion		<-2%
Dimension		Φ15x20.4mm
Weight		/
BFL		5.64mm
MBF		4.67mm
TTL		25.07mm
Operation	Iris	Manual
	Focus	Manual
	Zoom	/
Operating temperature		-15°C~+75°C

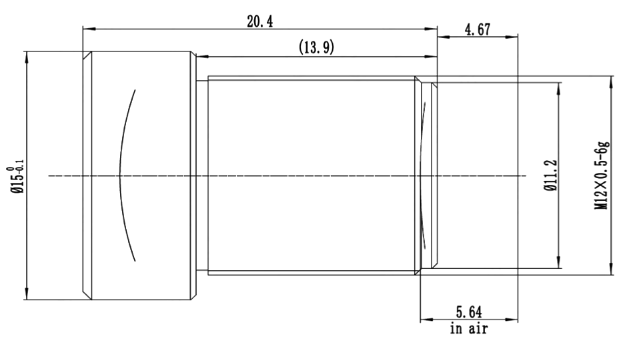

Size
Size tolerance(mm):		0-10±0.05	10-30±0.10	30-120±0.20
Angle tolerance		±2°
