3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:					LF2812-M12-3MP-F1.4-IR-C
Resolution					3MegaPixel
Image format					1/2.7"
Focal length					2.8-12mm
Aperture					F1.4
Mount					M12
Field Angle DxHxV(°)				" °	1/2.7		1/3		1/4
					2.8mm	12mm	2.8mm	12mm	2.8mm	12mm
				D	140	40	120	36	82.6	27.2
				H	100	32	89	29	64	21.6
				V	72	24	64	21.6	27	16.2
Optical Distortion					64.5%~4.3%		48%~3.5%		24.1%~1.95%
M.O.D.					0.3m

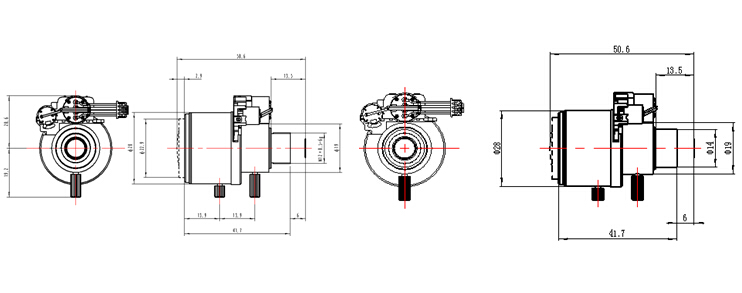

Dimension					Φ28x44.6mm
Weight					30±2g
Flange BFL					13.5mm
BFL					7.1~13.6mm
MBF					6mm
IR Correction					Yes
Operation				Iris			FIX
				Focus			Manual
				Zoom			Manual
Operating temperature							-20°C~+60°C
Size
Size tolerance(mm):			0-10±0.05			10-30±0.10			30-120±0.20
Angle tolerance							±2°
